9-TP20 (D)

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1966 ??
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 319719

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • 27
  • Semiconductors
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Line / Batteries (any type) / 220; 240 / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 9-TP20 - Sanyo Electric Co. Ltd.;
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

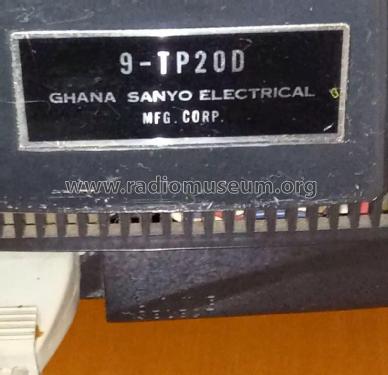

  • Sanyo Electric Co. Ltd., 9-TP20 (D)

    B/W TV 23" VHF only (tuner semiconductors not counted)

    See also VHF/UHF model 9-TP20 (U) (27tr)

    Is likely to be externally similar to Mini 9 9-TP20 (U) (26 tr) in whose scheme you can see the connector for external battery.

  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
