AFT-21

AFT-21; Sanyo Electric Co. (ID = 963236) Radio AFT-21; Sanyo Electric Co. (ID = 963237) Radio
AFT-21; Sanyo Electric Co. (ID = 963238) Radio AFT-21; Sanyo Electric Co. (ID = 963239) Radio
AFT-21; Sanyo Electric Co. (ID = 1300407) Radio AFT-21; Sanyo Electric Co. (ID = 1300408) Radio
AFT-21; Sanyo Electric Co. (ID = 1803751) Radio AFT-21; Sanyo Electric Co. (ID = 1803752) Radio
AFT-21; Sanyo Electric Co. (ID = 1803755) Radio
Use red slider bar for more.
AFT-21; Sanyo Electric Co. (ID = 963236) Radio
Sanyo Electric Co.: AFT-21 [Radio] ID = 963236 900x695
Select picture or schematic to display from thumbnails on the right and click for download.
For model AFT-21, Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1971 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SA440 2SA440 2SA321 2SA321 2SA321 2SB171 2SB171 2SB187 2SB187
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: AFT-21 - Sanyo Electric Co. Ltd.;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 158 x 96 x 40 mm / 6.2 x 3.8 x 1.6 inch

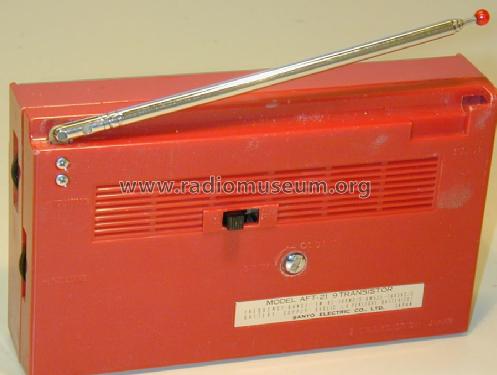

Notes Sanyo AM/FM transistor pocket radio , here color: wine-red with earphone jack. Made in Japan
Net weight (2.2 lb = 1 kg) 0.430 kg / 0 lb 15.2 oz (0.947 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.
