9 Transistor 3 Band AFT-6N

9 Transistor 3 Band AFT-6N; Sanyo Electric Co. (ID = 777354) Radio

9 Transistor 3 Band AFT-6N; Sanyo Electric Co. (ID = 777355) Radio
9 Transistor 3 Band AFT-6N; Sanyo Electric Co. (ID = 1717813) Radio 9 Transistor 3 Band AFT-6N; Sanyo Electric Co. (ID = 1717833) Radio
9 Transistor 3 Band AFT-6N; Sanyo Electric Co. (ID = 1717835) Radio
Use red slider bar for more.

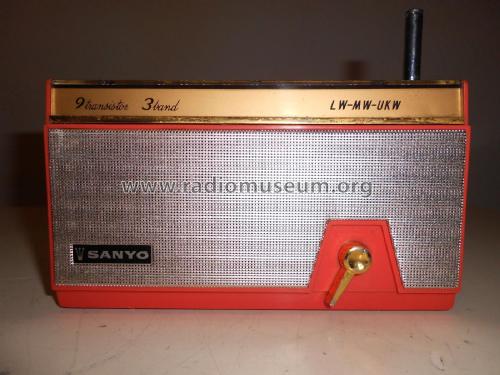

9 Transistor 3 Band AFT-6N; Sanyo Electric Co. (ID = 1717813) Radio
Sanyo Electric Co.: 9 Transistor 3 Band AFT-6N [Radio] ID = 1717813 800x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model 9 Transistor 3 Band AFT-6N, Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SA240 2SA240 2SA93 2SA93 2SA93 2SB54 2SB54 2SB189 2SB189
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out
from Radiomuseum.org Model: 9 Transistor 3 Band AFT-6N - Sanyo Electric Co. Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 175 x 100 x 52 mm / 6.9 x 3.9 x 2 inch
Notes

Reception ranges:

UKW 87 ... 108 MHz (VHF, FM)
MW 535 ... 1605 kHz
LW  150 ... 250 kHz

Net weight (2.2 lb = 1 kg) 0.675 kg / 1 lb 7.8 oz (1.487 lb)
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
