AM/FM Alarm Clock Radio RM-5090 (AU)

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 2004 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 364309

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage

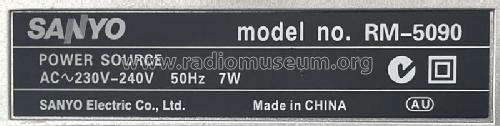

  • Alternating Current supply (AC) / 50 Hz, 230-240 V & Backup for clock: 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: AM/FM Alarm Clock Radio RM-5090 - Sanyo Electric Co. Ltd.;
  • Shape

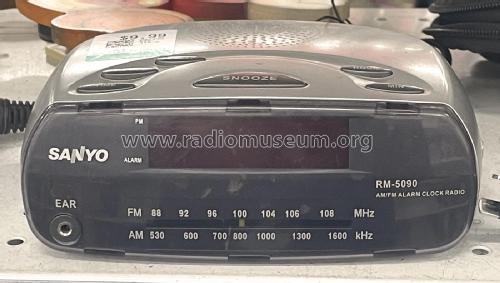

  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 182 x 62 x 142 mm / 7.2 x 2.4 x 5.6 inch
  • Notes

  • Tuning ranges:
    AM 526.5 - 1605.5 kHz
    FM  87.5 - 108 MHz

    Australia/New Zealand C-tick certication

    Made in China (PRC)

  • Net weight (2.2 lb = 1 kg)
  • 0.620 kg / 1 lb 5.9 oz (1.366 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Instruction Manual (AU))
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
