For model AM/FM Quartz Clock Radio & TV TPM2170, Sanyo Electric Co. Ltd.; Moriguchi (Osaka):
Ebay Nr. 150288537287 Bild bearbeitet.

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1980 ?? Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 1: E2225 or C205P4
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details

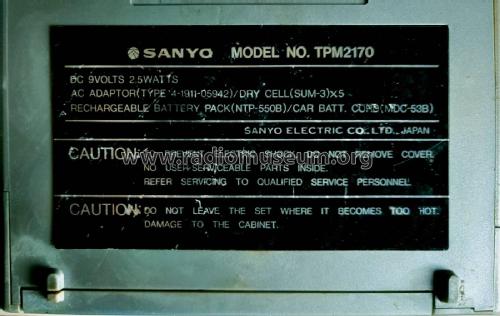

Power type and voltage Other, details in remarks or not known. / 9 Volt or 5 x AA 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AM/FM Quartz Clock Radio & TV TPM2170 - Sanyo Electric Co. Ltd.;
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 155 x 50 x 130 mm / 6.1 x 2 x 5.1 inch
Notes Sanyo TPM2170 is a Mini Black & White TV for UHF and VHF with AM/FM Quartz Alarm Clock Radio.
The screen is approximately 2 inches measured diagonally or ~5 cm with US-FCC /CCIR B/G/H and UK CCIR I standard VHF & UHF tuner, AM/FM radio,
LCD clock with separate bttery, AC mains with external 9 VDC adaptor (for 115 or 230 Volt AC) only, 2.5 W power consumption, built-in telescopic antenna, built-in accu charger.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
