AM/FM Quartz Clock Radio & TV TPM 2175

AM/FM Quartz Clock Radio & TV TPM 2175; Sanyo Electric Co. (ID = 828524) TV Radio AM/FM Quartz Clock Radio & TV TPM 2175; Sanyo Electric Co. (ID = 828520) TV Radio
AM/FM Quartz Clock Radio & TV TPM 2175; Sanyo Electric Co. (ID = 828522) TV Radio AM/FM Quartz Clock Radio & TV TPM 2175; Sanyo Electric Co. (ID = 828523) TV Radio
AM/FM Quartz Clock Radio & TV TPM 2175; Sanyo Electric Co. (ID = 828525) TV Radio AM/FM Quartz Clock Radio & TV TPM 2175; Sanyo Electric Co. (ID = 828526) TV Radio
AM/FM Quartz Clock Radio & TV TPM 2175; Sanyo Electric Co. (ID = 828527) TV Radio AM/FM Quartz Clock Radio & TV TPM 2175; Sanyo Electric Co. (ID = 828529) TV Radio
Use red slider bar for more.
AM/FM Quartz Clock Radio & TV TPM 2175; Sanyo Electric Co. (ID = 828524) TV Radio

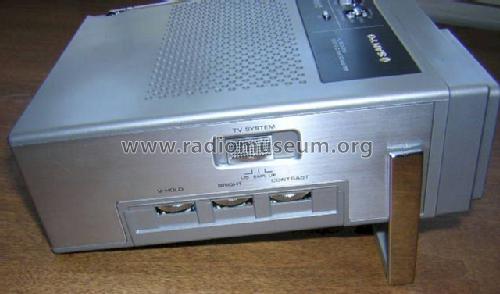

Sanyo Electric Co.: AM/FM Quartz Clock Radio & TV TPM 2175 [TV Radio] ID = 828524 570x323
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Quartz Clock Radio & TV TPM 2175, Sanyo Electric Co. Ltd.; Moriguchi (Osaka):
Ebay US 320594280803 by ceo500biz

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1980 ?? Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Batteries / addl. power jack / 5 x 1,5; 6 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AM/FM Quartz Clock Radio & TV TPM 2175 - Sanyo Electric Co. Ltd.;
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 14 x 7 x 16 inch / 356 x 178 x 406 mm
Notes

Sanyo TPM-2175 AM/FM Quartz Clock Radio & TV;
~2"/5 cm b/w TV with electronic standard tuner CCIR M (US FCC), B/G/H (EU) & I (UK),
AM/FM radio, LCD clock with separate battery, AC mains with external 9 VDC adaptor (for 115 or 230 Volt AC) only, 2.5 W power consumption, built-in telescopic antenna, built-in accu charger, earphones jack, ext. antenna in, ext. DC in, AC adaptor 4-1911-05942, rechargeable batt. pack NTP-550B, car batt. cord MDC-53B.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Here you find 1370 models, 1163 with images and 269 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
