AM/FM Quartz Clock Radio & TV TPM 2770

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1983 ??
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 215643

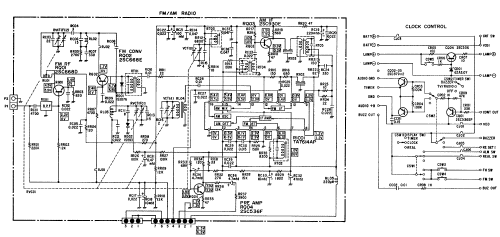

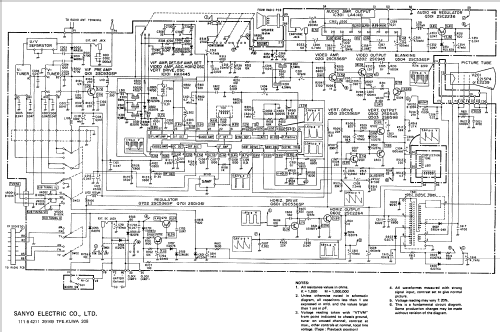

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Batteries / addl. power jack / 6 x 1,5 / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: AM/FM Quartz Clock Radio & TV TPM 2770 - Sanyo Electric Co. Ltd.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 173 x 60 x 152 mm / 6.8 x 2.4 x 6 inch
  • Notes
  • Sanyo TPM-2770 AM-FM Quartz Clock Radio & TV;
    approximately 2.4"/6cm b/w TV with electronic standard tuner CCIR-B/G(EUR), M(US) I(UK),
    AM/FM radio, LCD clock with separate battery, AC mains with external 9 VDC adaptor (for 115 or 230 Volt AC) only, 2.5 W power consumption, built-in telescopic antenna, built-in accu charger, earphones jack, ext. antenna in, ext. DC in, AC adpator 4-1911-05942, rechargeable batt. pack NTP-500, car batt. cord MDC-53B.
  • Author
  • Model page created by Yongpeng YOU. See "Data change" for further contributors.
