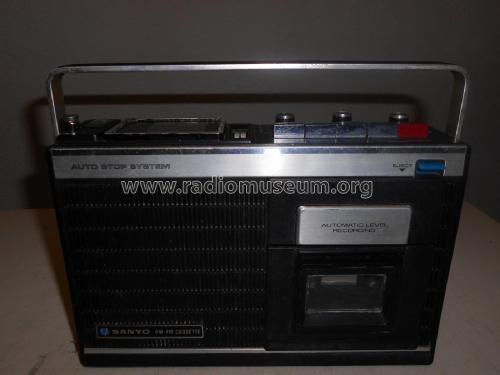

AM/FM Radio Recorder M-2400F
Sanyo Electric Co.: AM/FM Radio Recorder M-2400F [Radio] ID = 2364607 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1975 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 12: 2SC668 2SC772 2SC772 2SC772 2SC772 2SA101 2SB303 2SB186 2SB186 2SB405 2SB405 2SB185 1S553T 1S188 |
|---|
| Main principle | Superheterodyne (common); 4 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) 8 FM circuit(s) |
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | Cassette-Recorder or -Player |
| Power type and voltage | Line / Batteries (any type) / 120-240 / 4 X 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm |
| Power out | 2 W (unknown quality) |
| from Radiomuseum.org | Model: AM/FM Radio Recorder M-2400F - Sanyo Electric Co. Ltd.; |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 10.25 x 7.12 x 3.06 inch / 260 x 181 x 78 mm |
| Net weight (2.2 lb = 1 kg) | 5.6 lb (5 lb 9.6 oz) / 2.542 kg |
| Mentioned in | -- Original prospect or advert |
| Literature/Schematics (1) | -- Original-techn. papers. (Circuit diagram) |
