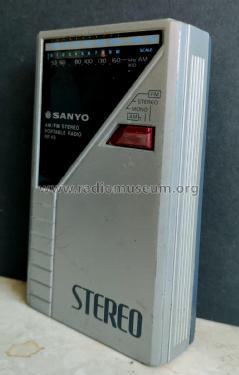

AM/FM Stereo Portable RP 45
Use red slider bar for more.
Sanyo Electric Co.: AM/FM Stereo Portable RP 45 [Radio] ID = 2290928 1066x1600
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1985 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 3 x AA 1.5 Volt |

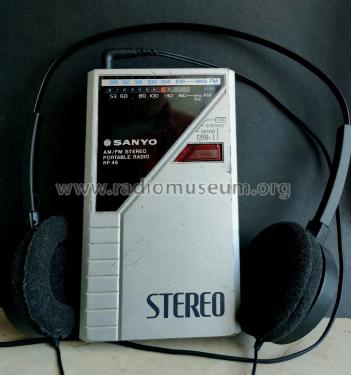

| Loudspeaker | - only for Earphone! |
| Power out | |
| from Radiomuseum.org | Model: AM/FM Stereo Portable RP 45 - Sanyo Electric Co. Ltd.; |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 3 x 5.5 x 1 inch / 76 x 140 x 25 mm |
| Notes | Made in Singapore |
Model page created by Aldo Andreani. See "Data change" for further contributors.
