Campanetta (Companetta) 16HA-860

• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1970 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78427

• Picture

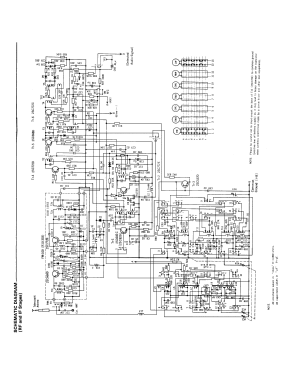

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors
• 2SC668 2SC772 2SC645 2SC772 2SC537 2SC772 2SC772 2SC772 2SB303 2SB186 2SB186 2SB186 2SC537 2SB405 2SD72 2SB492 1S188 1S334 1S553 1S1849R MA26

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / D: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.4 W (2 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Campanetta 16HA-860 - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 14.5 x 8 x 4.75 inch / 368 x 203 x 121 mm

• Notes

• Band coverage:

  • LW: 150 - 350 kHz
  • MW: 515 - 1620 kHz
  • SW1: 2.3 - 5.2 MHz
  • SW2: 5.95 - 7.3 MHz
  • SW3: 9.5 - 12.5 MHz
  • SW2: 14.5 - 18 MHz
  • FM: 87 - 108 MHz

  Elliptical speaker: 4" x 6"

  In the technical documentation the model is called "Companetta".

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
