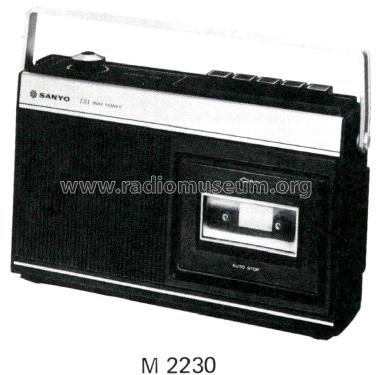

Cassette Tape Recorder M-2230

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

  • Year
  • 1974 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 261185

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 120; 200; 240 / D: 4 x 1.5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1.2 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassette Tape Recorder M-2230 - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 170 x 80 x 273 mm / 6.7 x 3.1 x 10.7 inch
  • Net weight (2.2 lb = 1 kg)
  • 4 lb 1 oz (4.063 lb) / 1.844 kg
  • Mentioned in
  • -- Original prospect or advert

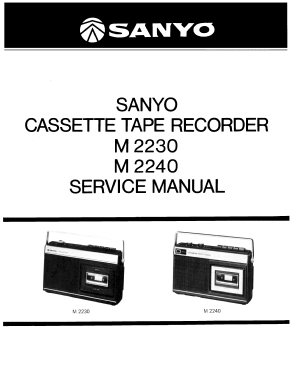

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
