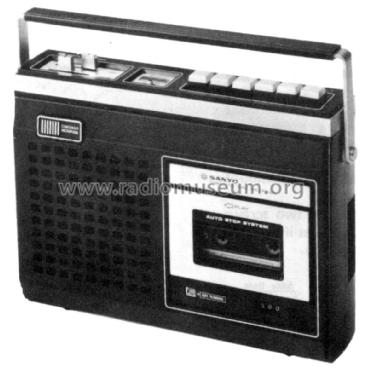

Portable Cassette Recorder M-2525
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1975 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 261183

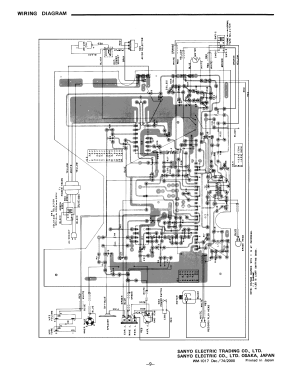

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / 120; 200; 240 / 7.5 / C: 5 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.2 cm = 3.6 inch
- Power out
- 1.5 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Portable Cassette Recorder M-2525 - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)

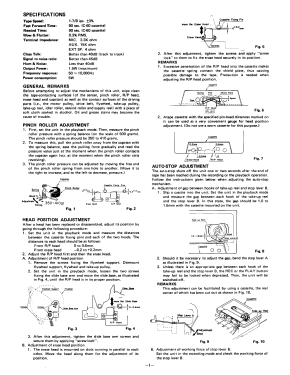

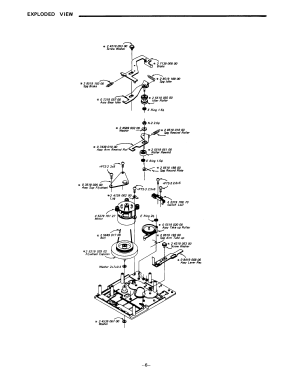

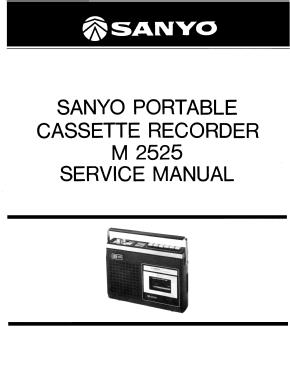

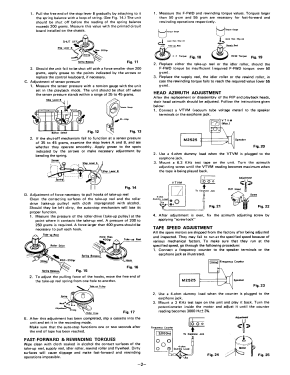

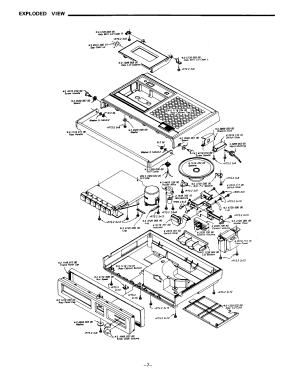

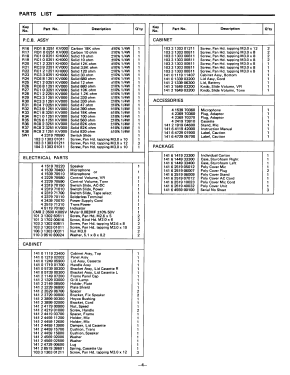

- -- Original-techn. papers.
- Author
- Model page created by a member from A. See "Data change" for further contributors.
