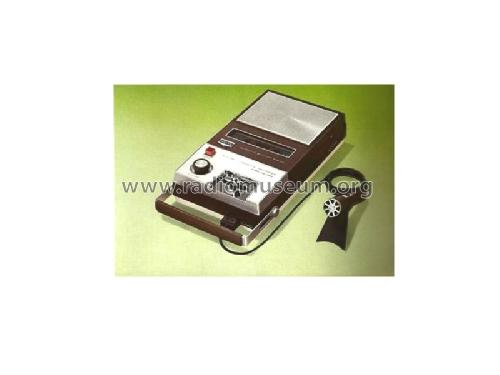

Portable Cassette Recorder M-1300
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1972 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 238859
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Batteries / addl. power jack / C: 5 x 1.5 / 7.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.7 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Portable Cassette Recorder M-1300 - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 120 x 60 x 230 mm / 4.7 x 2.4 x 9.1 inch
- Net weight (2.2 lb = 1 kg)
- 3 lb (3 lb 0 oz) / 1.362 kg
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
