Cassette Recorder M-2211 /E /Z
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1972 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 238795

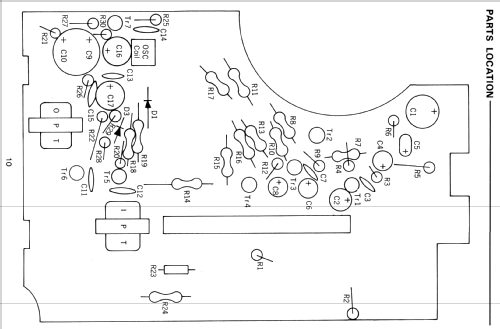

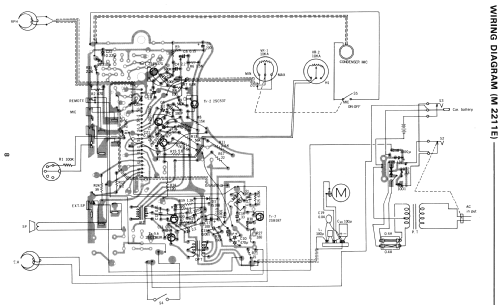

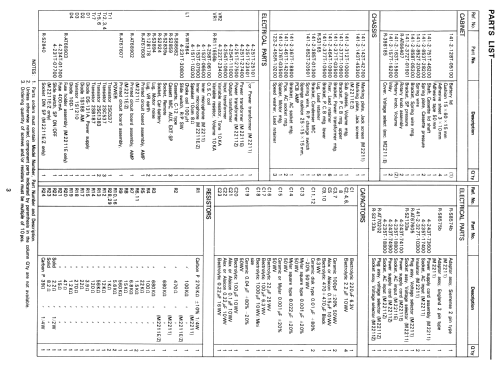

Aus dem Service-Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / see notes / C: 6 × 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.3 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Cassette Recorder M-2211 /E /Z - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 270 x 170 x 80 mm / 10.6 x 6.7 x 3.1 inch
- Notes
-
AC Power source:
- M-2211 : 120; 200; 240 VAC
- M-2211/E: 220 VAC
- M-2211/Z: 110; 220; 240 VAC
- Net weight (2.2 lb = 1 kg)
- 4 lb 0 oz (4 lb) / 1.816 kg
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
