Cassette Recorder M-787AZ

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

  • Year
  • 1970 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 168770

 Technical Specifications

  • Number of Transistors
  • 5
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player

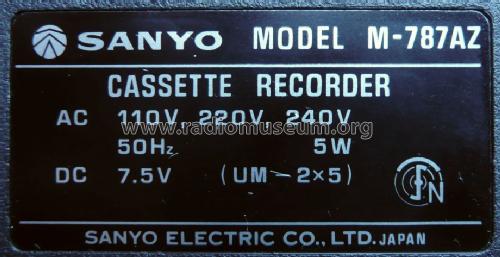

  • Power type and voltage
  • Line / Batteries (any type) / 110; 220; 240 / 5x1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
  • Power out
  • 1.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassette Recorder M-787AZ - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 136 x 67 x 256 mm / 5.4 x 2.6 x 10.1 inch
  • Notes
  • Tragbarer Kassettenrekorder mit Kunststoff-Schutztasche. Zum Zubehör gehörte auch ein Mikrofon. Auto-Stop System; Batterieanzeige; Betrieb mit Netzkabel, 7,5V Adapter oder 5 Babyzellen möglich; Buchsen für Fernbedienung, Mikro [3,3 KOhm] und Ohrhörer [8 Ohm]; seitlich ein 5pol DIN-Anschluss; 5 Transistoren, 5 Dioden, 2 Thermistoren.
  • Net weight (2.2 lb = 1 kg)
  • 1.6 kg / 3 lb 8.4 oz (3.524 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Guido Höh. See "Data change" for further contributors.
