CE14A1 Ch= 2100 (Serie EC-1 V7)
Sanyo España, Eurotrón, Ainsa; Huesca (HU) y Tudela (NA)
- Country
- Spain
- Manufacturer / Brand
- Sanyo España, Eurotrón, Ainsa; Huesca (HU) y Tudela (NA)
- Year
- 1990 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 321624

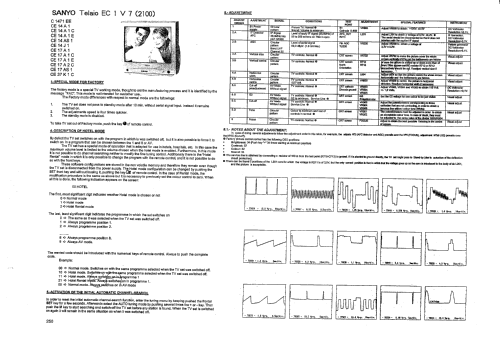

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A34EAC01X06
- Number of Transistors
- Semiconductors present.
- Semiconductors
- TDA7233
- Main principle
- ZF/IF 38900 kHz
- Power type and voltage
- Alternating Current supply (AC) / 220-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: CE14A1 Ch= 2100 - Sanyo España, Eurotrón, Ainsa;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 140 x 130 x 140 mm / 5.5 x 5.1 x 5.5 inch
- Notes
-

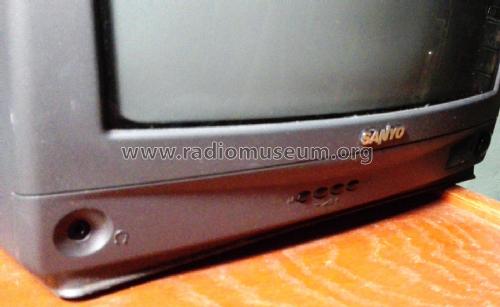

Pantalla de 14" color

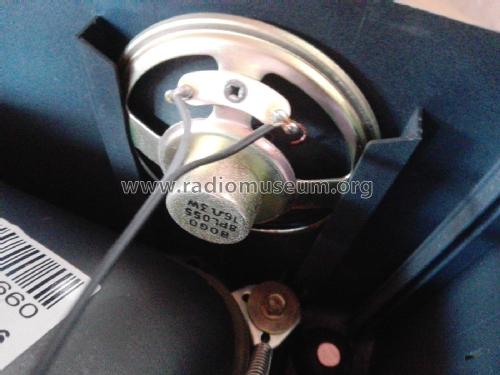

Altavoz 16 Ohm
Amplificador audio: TDA7233S
- Author
- Model page created by Josh Toreno. See "Data change" for further contributors.
