Clock radio 6CA-T45

Clock radio 6CA-T45; Sanyo Electric Co. (ID = 1629387) Radio
Clock radio 6CA-T45; Sanyo Electric Co. (ID = 1718919) Radio Clock radio 6CA-T45; Sanyo Electric Co. (ID = 386021) Radio
Clock radio 6CA-T45; Sanyo Electric Co. (ID = 1718920) Radio Clock radio 6CA-T45; Sanyo Electric Co. (ID = 1718921) Radio
Clock radio 6CA-T45; Sanyo Electric Co. (ID = 1718922) Radio Clock radio 6CA-T45; Sanyo Electric Co. (ID = 1718923) Radio
Clock radio 6CA-T45; Sanyo Electric Co. (ID = 1718924) Radio Clock radio 6CA-T45; Sanyo Electric Co. (ID = 1763925) Radio
Use red slider bar for more.
Clock radio 6CA-T45; Sanyo Electric Co. (ID = 1718919) Radio
Sanyo Electric Co.: Clock radio 6CA-T45 [Radio] ID = 1718919 800x415

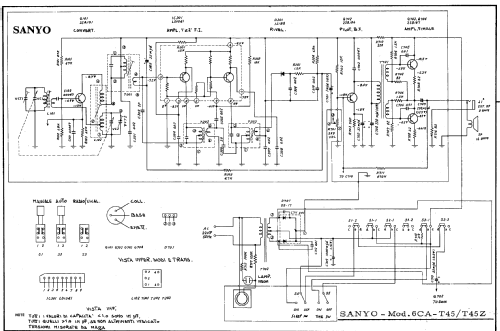

Select picture or schematic to display from thumbnails on the right and click for download.
For model Clock radio 6CA-T45, Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1976 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: 2SA101 2SB186 2SB187 2SB187 1S188
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Clock radio 6CA-T45 - Sanyo Electric Co. Ltd.;
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 220 x 105 x 140 mm / 8.7 x 4.1 x 5.5 inch
Notes IF amplifier contains 1 IC LD1041 (2 transistors, 6 resistors).
Source of data -- Collector info (Sammler)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
