• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1983 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 195943

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

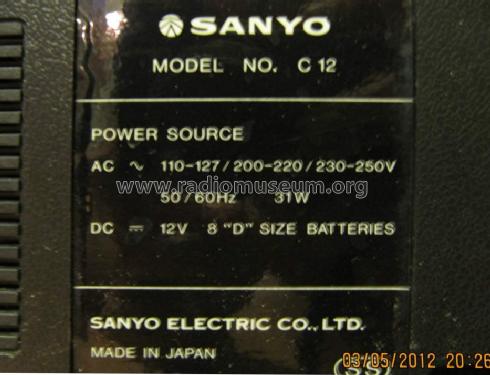

• Power type and voltage
• Line / Batteries (any type) / 115; 220 / 8 x 1.5 Volt

• Loudspeaker
• - This model requires external speaker(s). / Ø 10 cm = 3.9 inch

• Power out
• 6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Compo System C-12 - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 245 x 220 x 160 mm / 9.6 x 8.7 x 6.3 inch

• Notes
• Radio Stereo con 4 bandas: FM, MW, SW1 y SW2.
  Incorpora ecualizador gráfico de 5 modos y vúmetro. Lleva una Pletina de Cassete.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
