Compo System C 15

Compo System C 15; Sanyo Electric Co. (ID = 646320) Radio Compo System C 15; Sanyo Electric Co. (ID = 1739719) Radio
Compo System C 15; Sanyo Electric Co. (ID = 1739720) Radio Compo System C 15; Sanyo Electric Co. (ID = 1739721) Radio
Compo System C 15; Sanyo Electric Co. (ID = 1739722) Radio Compo System C 15; Sanyo Electric Co. (ID = 1739723) Radio
Use red slider bar for more.

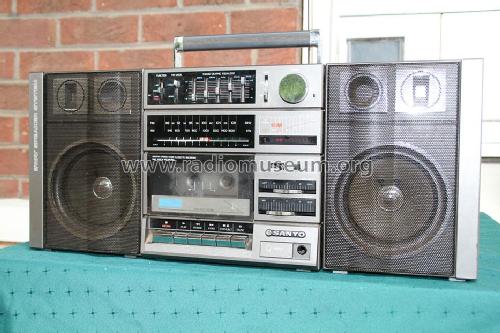

Compo System C 15; Sanyo Electric Co. (ID = 646320) Radio
Sanyo Electric Co.: Compo System C 15 [Radio] ID = 646320 843x456
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compo System C 15, Sanyo Electric Co. Ltd.; Moriguchi (Osaka):
Sanyo Prospekt

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1985 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 115/230; 8 x 1,5 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Compo System C 15 - Sanyo Electric Co. Ltd.;
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 552 x 235 x 155 mm / 21.7 x 9.3 x 6.1 inch
Notes 4-Band Stereo-Compo System mit 5-fach Equalizer und Cassetten-Deck.
2 x 5,5 Watt Ausgangsleistung, LED-Pegelanzeige.
2 abnehmbare Zweiweg-LS-Boxen (Bass 120mm, Piezo-HT 20mm).
Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
