• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1973–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 317660

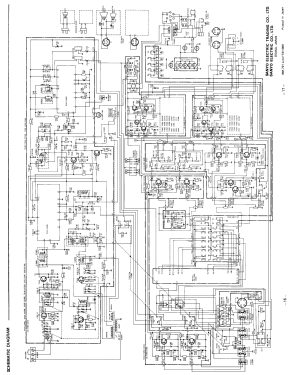

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 36

• Semiconductors
• 2SK41 2SC668 2SC929 2SC930 2SC693 2SC537 2SA608 2SA532 2SD330 2SB514 LA1201 LA3301 1S188 DS430 DS130 SZ9

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 50/60 Hz, 120; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

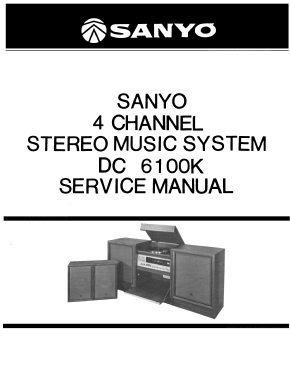

• Model: 4 Channel Stereo Music System DC-6100K - Sanyo Electric Co. Ltd.;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 21.4375 x 26 x 15.375 inch / 545 x 660 x 391 mm

• Notes

• Sanyo Model DC-6100K

    Solid state de-luxe 4-channel surround sound console with a 2-band tuner.
    Features: AM/FM tuner; 144 P.M.P., front speakers; 8" heavy duty woofer, 4" tweeter. Bass reflex type speaker enclosures. Rear speakers, 5½" heavy duty bass reflex speaker enclosures. Four separate slide volume controls. Programming section 2-channel, 2-2-4, RM, SQ logic and discrete (note: a CD4 demodulator to be be connected via unit). Belt-driven, aluminium diecast 12" turntable, auto return tone arm, moving magnetic cartridge with diamond stylus.

    Speaker unit dimensions:

  • front: 19 5/16" x 26" x 15⅜"; weight 12.5 kg each
  • rear:  11 13/16" x 17⅜" x 7⅜". weight 3.9 kg each

  Each semiconductor type listed once

  This model sold in Australia between 1973 & 1978 for $645.00

• Net weight (2.2 lb = 1 kg)
• 25.4 kg / 55 lb 15.2 oz (55.947 lb)

• Mentioned in
• Mingay's Price Service (Feb 1974 to Feb 1978.)

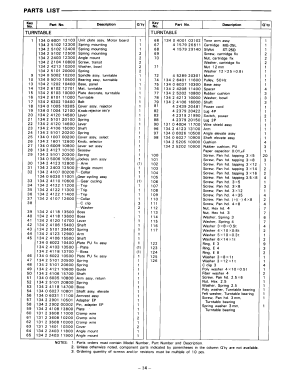

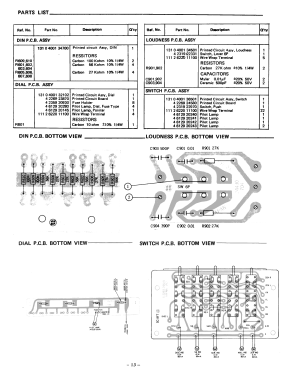

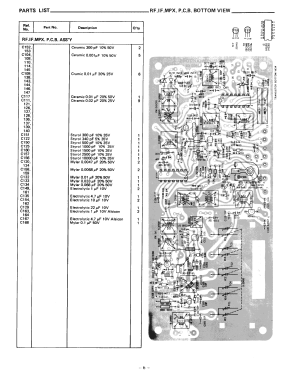

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
