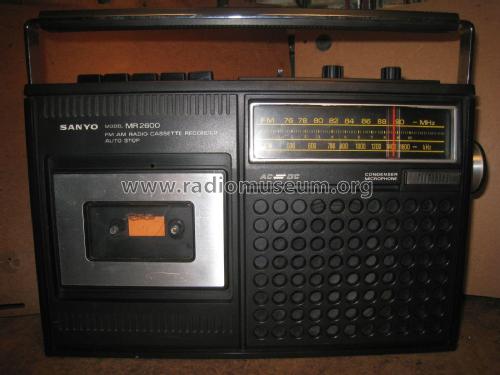

FM-AM Radio Cassette Recoder Auto Stop MR 2600

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1978 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 281258

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 100 / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM-AM Radio Cassette Recoder Auto Stop MR 2600 - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 305 x 190 x 93 mm / 12 x 7.5 x 3.7 inch
  • Notes

  • Controllo di volume e tono - microfono incorporato con interruttore on/off -antenna esterna - presa per microfono ext + remote - beat cancel 1/2 - monitor on/off

    Frequency range FM 76/90 Mhz - AM 525/ 1605 Khz

    Consumo : 7 W

    Manico di trasporto

    Tasti Rew - F Fwd - Play -Record -Stop/eject

    Made in Japan

  • Net weight (2.2 lb = 1 kg)
  • 2.8 kg / 6 lb 2.7 oz (6.167 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
