MW-SW1-SW2-FM Portable Radio Cassette Recorder M-2415H

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1972 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 183981

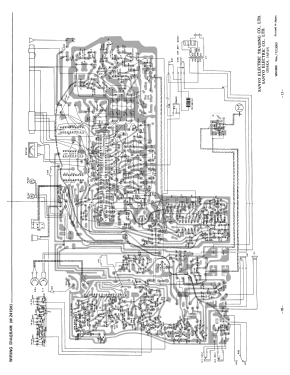

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 16
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 120; 200; 240 / 6 V / D: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm
  • Power out
  • 2.5 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: MW-SW1-SW2-FM Portable Radio Cassette Recorder M-2415H - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 345 x 213 x 86 mm / 13.6 x 8.4 x 3.4 inch
  • Notes
  • Sanyo M 2415H FM-SW1-SW2-MW Radio Cassette;
    FM: 88 - 108 MHz,
    SW1: 2.3 - 7.3 MHz,
    SW2: 7.2 - 22.0 MHz,
    MW: 530 - 1605 kHz,
    level/batt. meter,
    treminals:
    ext. speaker, aux, mic. & rem., 10 W power consumption.
  • Net weight (2.2 lb = 1 kg)
  • 7.2 lb (7 lb 3.2 oz) / 3.269 kg

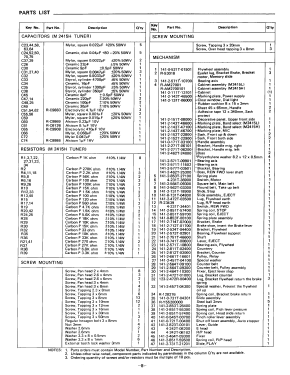

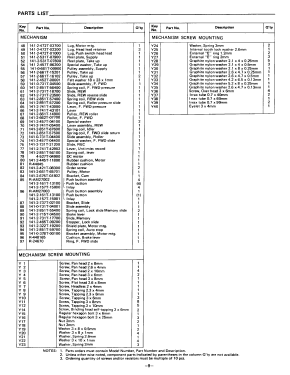

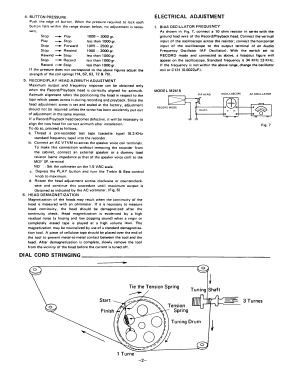

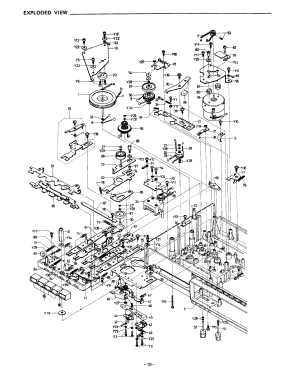

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
