- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1983
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 130718

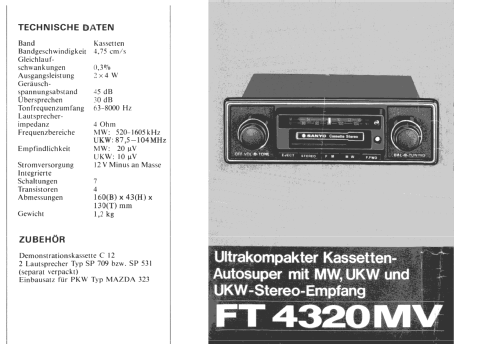

Q: Prospekt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: FT-4320MV - Sanyo Electric Co. Ltd.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 160 x 43 x 130 mm / 6.3 x 1.7 x 5.1 inch
- Notes
- 7 ICs.
Sanyo Cassette Stereo FT-4320 MV; UKW bis 104 MHz, Stereo, FM AFC, NF-Frequenzbereich 63 - 8.000 Hz, Schnellvorlauftaste, DDR Importgerät für 2.100 Mark mit passenden Lautsprechern.
- Net weight (2.2 lb = 1 kg)
- 1.2 kg / 2 lb 10.3 oz (2.643 lb)
- Mentioned in
- Der Deutsche Straßenverkehr 5/1983
- Author
- Model page created by a member from A. See "Data change" for further contributors.
