Hi-iFi Stereo System DCW 4800UM

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1978 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 284680

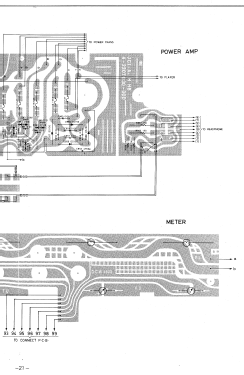

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 37
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 34 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Hi-iFi Stereo System DCW 4800UM - Sanyo Electric Co. Ltd.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 680 x 170 x 350 mm / 26.8 x 6.7 x 13.8 inch
  • Notes

  • System comprises;

    • AM/FM Stereo/Shortwave radio
    • Stereo cassette deck with Dolby noise reduction
    • Semi-automatic turntable with a magnetic cartridge & diamond stylus.
    • 17 watt per channel amplifier



  • Net weight (2.2 lb = 1 kg)
  • 13.5 kg / 29 lb 11.8 oz (29.736 lb)
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
