High Vivid 14-H1 Australian standard version.

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1957 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 283729

 Technical Specifications

  • Number of Tubes
  • 17
  • Main principle
  • Superhet with RF-stage; ZF/IF 28250/22750 kHz; 2 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: High Vivid 14-H1 [Australian standard version.] - Sanyo Electric Co. Ltd.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 480 x 455 x 460 mm / 18.9 x 17.9 x 18.1 inch
  • Notes

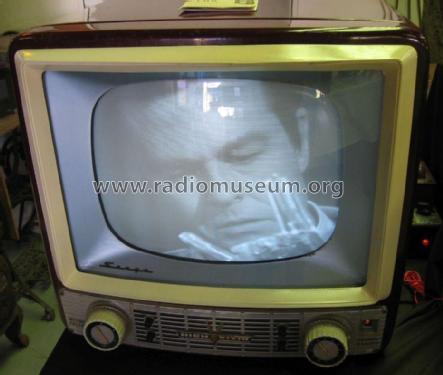

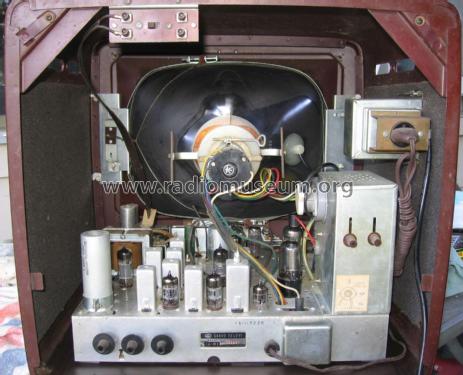

  • This version of the Sanyo 14-H1 was factory modified for use in Australia and tunes the 10 then standard Australian VHF channels.  It is possible that the particular example pictured was exported to Australia for evaluation, but the decision was made not to go ahead with exporting more.  Supporting this is the serial number of the example pictured; 000001.  This particular set uses a Sanyo branded 240 to 100 volt auto transformer, and has a live chassis.  The metal case was not earthed originally, so safety concerns may have counted against it being accepted for import.

  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
