M-2438 (US)

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1978 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 363273

 Technical Specifications

  • Number of Transistors
  • 1
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage

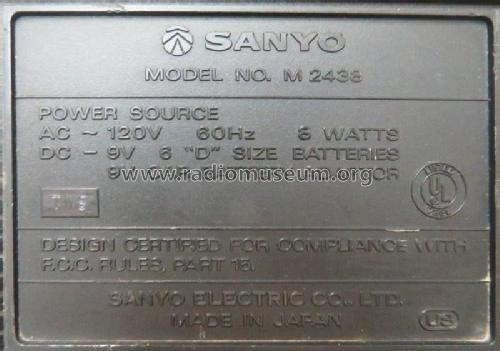

  • Line plus power jack, mostly with battery or storage battery / 60 Hz, 120 / D: 6 x 1.5 / DC: 9 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 3.5 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: M-2438 - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 377 x 101 x 245 mm / 14.8 x 4 x 9.6 inch
  • Notes

  • [US] version for the United States

    Frequency range:
    AM 525 - 1615 kHz
    FM 87.5 - 108 MHz

    See also:
    M-2438F [AS] (50 Hz, 240 V, Australia)
    M-2438F [SS] (50-60 Hz, 120; 200; 240 V, General Export)
    M-2438L (50 Hz, 127; 220 V, Spain, with long-wave)

    Later version, made in Singapore:
    M-2438F [US]  (50-60 Hz, 120; 200; 240 V, United States)

  • Net weight (2.2 lb = 1 kg)
  • 7 lb 11 oz (7.688 lb) / 3.490 kg
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Service Manual (WM-3124))
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
