- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1972 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 122975
- Number of Transistors
- 36
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 110; 220; 240 / 6 ×1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 0.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

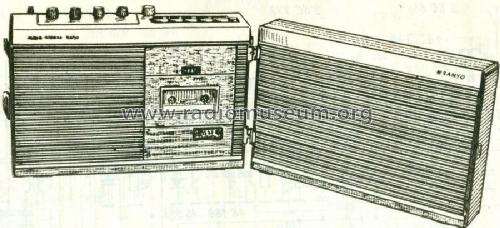

- Model: M-4400 E - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 310 x 205 x 154 mm / 12.2 x 8.1 x 6.1 inch
- Notes
- Stereo
- Net weight (2.2 lb = 1 kg)
- 4.3 kg / 9 lb 7.5 oz (9.471 lb)
- Literature/Schematics (1)
- Radio es Televizio Vevö keszülekek 1972-75
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
