Pigeon Super SS-35

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1956 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 277006

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 100 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Pigeon Super SS-35 - Sanyo Electric Co. Ltd.;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 325 x 160 x 130 mm / 12.8 x 6.3 x 5.1 inch
  • Notes

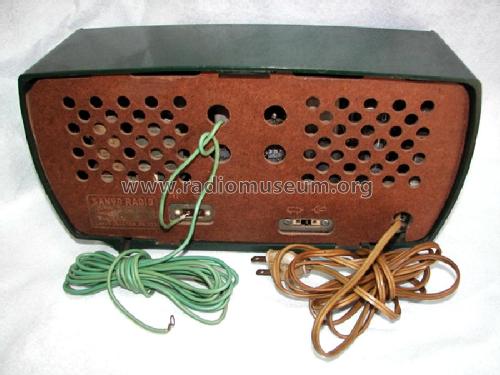

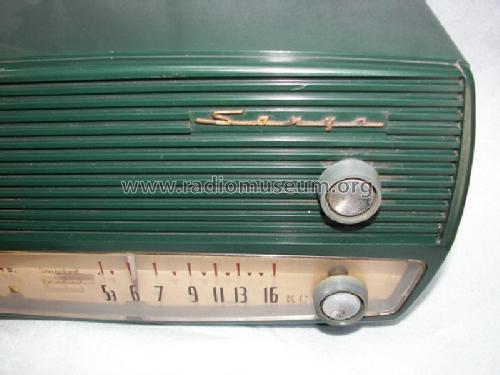

  • Sanyo model SS-35 is a 5-Tube AC/DC operated medium waveband radio.

  • Net weight (2.2 lb = 1 kg)
  • 3.5 kg / 7 lb 11.3 oz (7.709 lb)
  • Price in first year of sale
  • 6,300.00 JPY
  • Author
  • Model page created by Daniel Rosha. See "Data change" for further contributors.
