• Year
  • 1965
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 130880

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 4
  • Main principle
  • Audio-Amplification; 3 AF stage(s)
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage

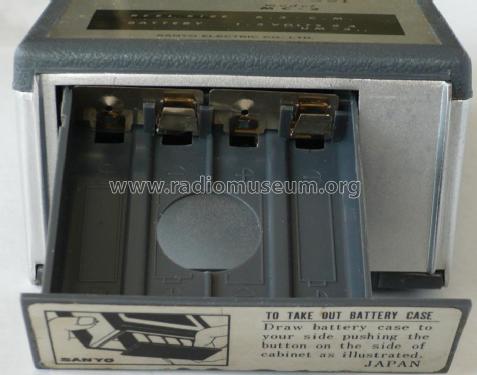

  • Dry Batteries / AA: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
  • Power out
  • 0.1 W (0.25 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Pocket-Corder MC-2 - Sanyo Electric Co. Ltd.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 145 x 90 x 55 mm / 5.7 x 3.5 x 2.2 inch
  • Net weight (2.2 lb = 1 kg)
  • 1.75 lb (1 lb 12 oz) / 0.795 kg
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
