Portable Cassette Recorder MR-4040 and MR-4040-Canada
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1971 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 352276
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Audio-Amplification; 2 AF stage(s)
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 120; 200; 240 / C: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1.5 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Portable Cassette Recorder MR-4040 and MR-4040-Canada - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 254 x 157 x 71 mm / 10 x 6.2 x 2.8 inch
- Notes
-
AC power source:
- MR-4040: 120-200-240 VAC @ 50/60 Hz
- MR-4040 (Canada): 117 VAC
Suffix for power supply cord:
- A: Austalia type 3 pin. Terminal 3 pin
- B: Cord 2 pin. Terminal 3 pin
- C: England type 3 pin. Terminal 3 pin
- D: adapter for Siemens 2 pin, adapter for England 2 pin
- G: Cord 2 pin. Terminal 2 pin
- Net weight (2.2 lb = 1 kg)
- 4.8 lb (4 lb 12.8 oz) / 2.179 kg

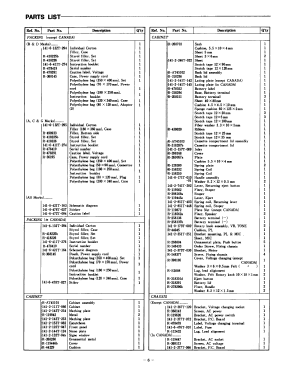

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
