Portable Cassette Recorder with AM/FM M-2400G

Portable Cassette Recorder with AM/FM M-2400G; Sanyo Electric Co. (ID = 2050143) Radio Portable Cassette Recorder with AM/FM M-2400G; Sanyo Electric Co. (ID = 2050144) Radio
Use red slider bar for more.
Portable Cassette Recorder with AM/FM M-2400G; Sanyo Electric Co. (ID = 2050143) Radio

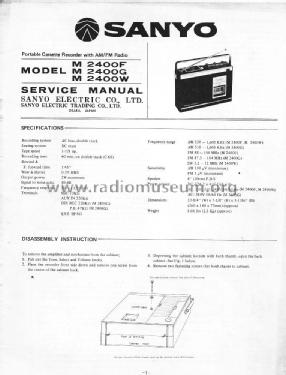

Sanyo Electric Co.: Portable Cassette Recorder with AM/FM M-2400G [Radio] ID = 2050143 765x1000
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable Cassette Recorder with AM/FM M-2400G, Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 31:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 240/ C: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 2 W (max.)
from Radiomuseum.org Model: Portable Cassette Recorder with AM/FM M-2400G - Sanyo Electric Co. Ltd.;
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 180 x 77 mm / 10.2 x 7.1 x 3 inch
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Mentioned in -- Original-techn. papers.

Model page created by João-Afonso Santos. See "Data change" for further contributors.
