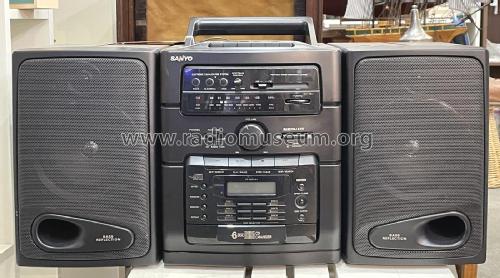

Portable Component System MCH-S970F (AU)

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1994 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 364032

 Technical Specifications

  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Line / Batteries (any type) / 50 Hz, 230-240 / D: 8 x 1.5 & AA: 4 x 1.5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Portable Component System MCH-S970F - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 600 x 280 x 280 mm / 23.6 x 11 x 11 inch
  • Notes

  • Portable stereo radio/cassette/CD player with remote control.

    Tuner range:
    AM 525 - 1710 kHz
    FM 88 - 108 MHz

    Made in Malaysia

  • Net weight (2.2 lb = 1 kg)
  • 7.6 kg / 16 lb 11.8 oz (16.74 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Service Manual, Aug-1994)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
