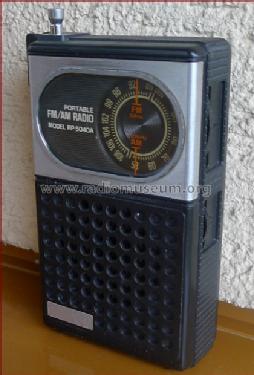

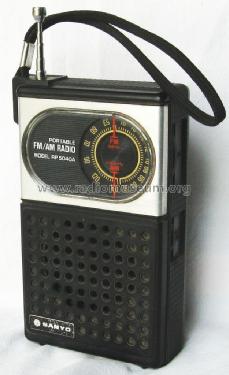

Portable FM/AM Radio RP 5040A

Portable FM/AM Radio RP 5040A; Sanyo Electric Co. (ID = 1631107) Radio Portable FM/AM Radio RP 5040A; Sanyo Electric Co. (ID = 1530069) Radio
Portable FM/AM Radio RP 5040A; Sanyo Electric Co. (ID = 1530071) Radio Portable FM/AM Radio RP 5040A; Sanyo Electric Co. (ID = 1631101) Radio
Portable FM/AM Radio RP 5040A; Sanyo Electric Co. (ID = 1631102) Radio Portable FM/AM Radio RP 5040A; Sanyo Electric Co. (ID = 1631103) Radio
Portable FM/AM Radio RP 5040A; Sanyo Electric Co. (ID = 1631104) Radio Portable FM/AM Radio RP 5040A; Sanyo Electric Co. (ID = 1631105) Radio
Portable FM/AM Radio RP 5040A; Sanyo Electric Co. (ID = 1631106) Radio Portable FM/AM Radio RP 5040A; Sanyo Electric Co. (ID = 2365891) Radio
Use red slider bar for more.
Portable FM/AM Radio RP 5040A; Sanyo Electric Co. (ID = 1631107) Radio
Sanyo Electric Co.: Portable FM/AM Radio RP 5040A [Radio] ID = 1631107 933x1390

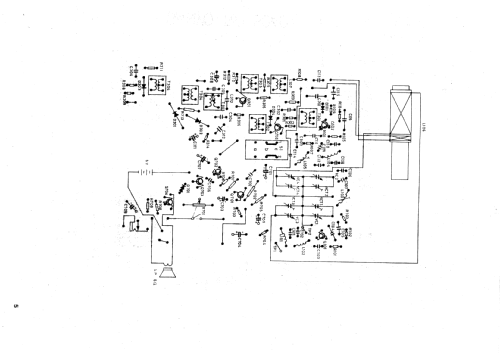

Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable FM/AM Radio RP 5040A, Sanyo Electric Co. Ltd.; Moriguchi (Osaka):
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1976–1979 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out
from Radiomuseum.org Model: Portable FM/AM Radio RP 5040A - Sanyo Electric Co. Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 93 x 152 x 43 mm / 3.7 x 6 x 1.7 inch
Notes

There are even variants with FM OIRT 62-74 MHz.

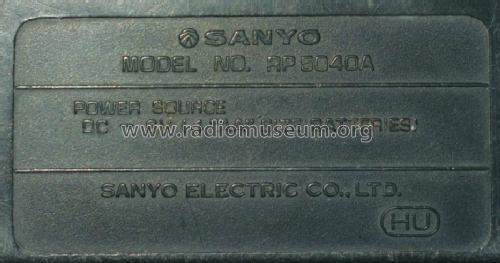

It works with four AA batteries and in the back it doesn't show "Made in....": it's almost identical to the model RP5050 which works with one 9V battery and shows "Made in Singapore". Both of them show an oval with two letters which could be a country code.

Similar to Emerson ADE 2004, Maxell, Eco, Caltronic, Empress, Sano, VDM, Panavox, Jupiter, Gitem, Sakura, Crackerina, Oskar, Neywa-2, Tempest M-688, Advance AD200, Caprice, Stewart, Candle, Browni

Sold in Australia between 1976 & 1979 for $14.95

Net weight (2.2 lb = 1 kg) 0.340 kg / 0 lb 12 oz (0.749 lb)
Source of data -- Original-techn. papers.
Mentioned in Mingay's Radio Electrical Weekly Price Service (REWPS) (Aug 1976 to Feb 1979.)

Model page created by Rudolf Nemeth. See "Data change" for further contributors.
