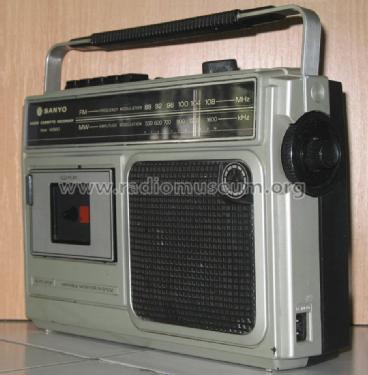

Radio Cassette Recorder M2560FZ

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

  • Year
  • 1983 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 237514

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110; 220; 240 / UM1: 5 ×1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio Cassette Recorder M2560FZ - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 325 x 210 x 81 mm / 12.8 x 8.3 x 3.2 inch
  • Notes
  • MW: 530-1600 kHz.
    FM: 88-108 MHz.

    AC Input, Mic, Ear. Cassette Auto Stop.

    Variable Monitor System, Telescop Antenna.
