AM/FM 2-Band Portable RP5055

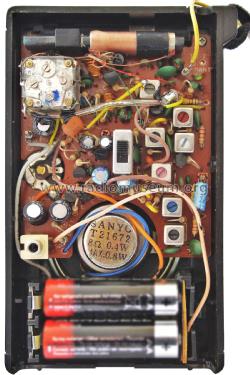

AM/FM 2-Band Portable RP5055; Sanyo Electric Co. (ID = 1967816) Radio AM/FM 2-Band Portable RP5055; Sanyo Electric Co. (ID = 1967817) Radio
AM/FM 2-Band Portable RP5055; Sanyo Electric Co. (ID = 1967818) Radio
Use red slider bar for more.
AM/FM 2-Band Portable RP5055; Sanyo Electric Co. (ID = 1967816) Radio
Sanyo Electric Co.: AM/FM 2-Band Portable RP5055 [Radio] ID = 1967816 1400x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM 2-Band Portable RP5055, Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SC1675 2SC1675 2SC1675 2SC1675 2SA733 2SC945 CS9012 CS9013
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 4 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.25 W (undistorted)
from Radiomuseum.org Model: AM/FM 2-Band Portable RP5055 - Sanyo Electric Co. Ltd.;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 82 x 140 x 34 mm / 3.2 x 5.5 x 1.3 inch
Notes

AM/FM 2-Band Portable mit Handschlaufe, Kopfhöreranschluß über 3,5 mm Klinkenbuchse, Teleskopantenne 60 cm

Siehe auch Sanyo RP5055U

Net weight (2.2 lb = 1 kg) 0.250 kg / 0 lb 8.8 oz (0.551 lb)

Model page created by Karl-Heinz Entrich. See "Data change" for further contributors.
