RP5065 All

RP5065; Sanyo Electric Co. (ID = 2238597) Radio RP5065; Sanyo Electric Co. (ID = 2238598) Radio
RP5065; Sanyo Electric Co. (ID = 2238599) Radio RP5065; Sanyo Electric Co. (ID = 178819) Radio
RP5065; Sanyo Electric Co. (ID = 540051) Radio RP5065; Sanyo Electric Co. (ID = 1111737) Radio
RP5065; Sanyo Electric Co. (ID = 1111738) Radio RP5065; Sanyo Electric Co. (ID = 1111739) Radio
RP5065; Sanyo Electric Co. (ID = 1111740) Radio RP5065; Sanyo Electric Co. (ID = 1111741) Radio
Use red slider bar for more.
RP5065; Sanyo Electric Co. (ID = 2238597) Radio
Sanyo Electric Co.: RP5065 [Radio] ID = 2238597 836x1024
Select picture or schematic to display from thumbnails on the right and click for download.
For model RP5065 All, Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1985 Category: Broadcast Receiver - or past WW2 Tuner
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details

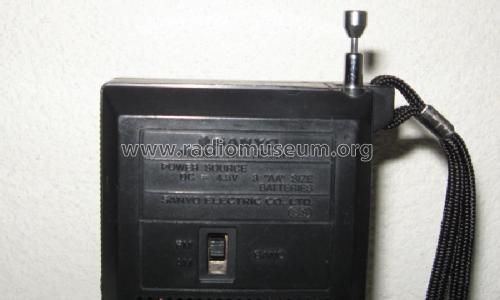

Power type and voltage Dry Batteries / 3 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: RP5065 [All] - Sanyo Electric Co. Ltd.;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 75 x 135 x 30 mm / 3 x 5.3 x 1.2 inch
Notes Sanyo RP 5065;
ICs: BA4403, BA4236L, BA526.
Different color versions known, made in China.
Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Mentioned in -- Original prospect or advert (1985 Sanyo Portables (German & French))
Literature/Schematics (1) -- Collector info (Sammler)

Model page created by Howard Craven. See "Data change" for further contributors.



All listed radios etc. from Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Here you find 1366 models, 1161 with images and 269 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
