For model RP-1250, Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1975–1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: CS9011 CS9011 CS9011 CS9014 CS9013 CS9013 CDG24 CDG24
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.08 W (unknown quality)
from Radiomuseum.org Model: RP-1250 - Sanyo Electric Co. Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 100 x 70 x 30 mm / 3.9 x 2.8 x 1.2 inch
Notes

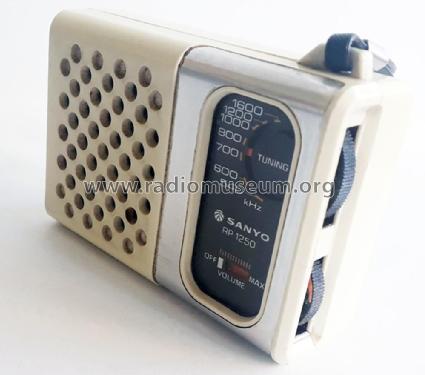

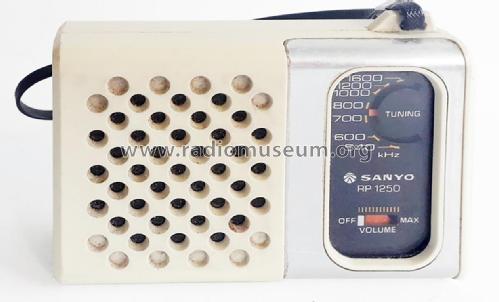

This model case is presented in two colors: White or Red. One can see also that two diferent dials may be presented for this model. One has the right frequency.The other shows a multiplier factor of 10 times to reach the right frequency. Ex: "1600" kHz. The other "160" and a factor of "x10kHz". PS:(On the back cover one has a ref. "FTZ NR.104/127 the other seems to have different engraved words.)

This model sold in Australia between 1975 & 1978 for $7.95

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Mentioned in -- Collector info (Sammler)
Literature/Schematics (1) Radio- es TV- kapcsolások, 1975-77
Literature/Schematics (2) Mingay's Radio Electrical Weekly Price Service (REWPS) (Aug 1975 to Feb 1978.)
