• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1976 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 163775

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SC1675 2SC1675 2SC1675 2SC1675 2SA733 2SC945 JE9012 JE9013

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 50-60 Hz, 120; 200; 240 / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: FM/AM 2-Band Receiver RP-5225 SS - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 205 x 70 mm / 8.7 x 8.1 x 2.8 inch

• Notes

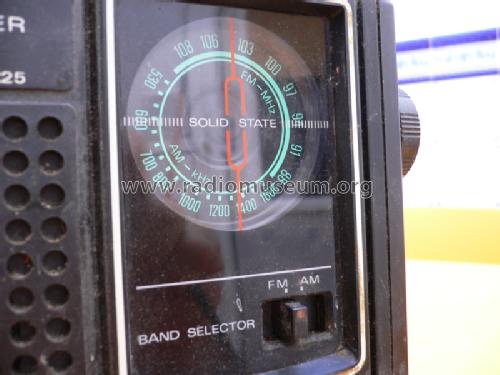

• AM/FM AC/battery portable radio.

  MADE IN SINGAPORE

  See also:
  RP-5225 AS (50Hz, 240V)
  RP-5225 US (60Hz, 120V)

• Author
• Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
