RP-5230 FO

RP-5230 FO; Sanyo Electric Co. (ID = 515213) Radio RP-5230 FO; Sanyo Electric Co. (ID = 515228) Radio

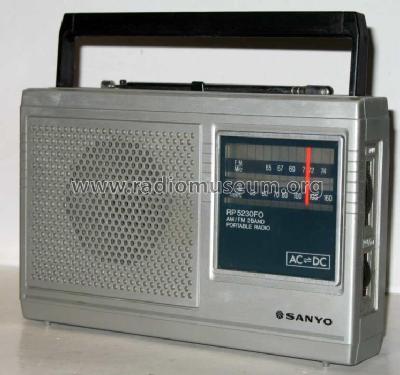

RP-5230 FO; Sanyo Electric Co. (ID = 515218) Radio RP-5230 FO; Sanyo Electric Co. (ID = 515215) Radio
RP-5230 FO; Sanyo Electric Co. (ID = 515216) Radio RP-5230 FO; Sanyo Electric Co. (ID = 515217) Radio
RP-5230 FO; Sanyo Electric Co. (ID = 515227) Radio
Use red slider bar for more.
RP-5230 FO; Sanyo Electric Co. (ID = 515213) Radio
Sanyo Electric Co.: RP-5230 FO [Radio] ID = 515213 898x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model RP-5230 FO, Sanyo Electric Co. Ltd.; Moriguchi (Osaka):
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1982 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common); ZF/IF 457/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: RP-5230 FO - Sanyo Electric Co. Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 202 x 132 x 52 mm / 8 x 5.2 x 2 inch
Notes FM: OIRT (64-74 MHz). 1 IC-s.
Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
