RP-7331

RP-7331; Sanyo Electric Co. (ID = 512557) Radio RP-7331; Sanyo Electric Co. (ID = 1061847) Radio
RP-7331; Sanyo Electric Co. (ID = 1061849) Radio RP-7331; Sanyo Electric Co. (ID = 1061850) Radio
RP-7331; Sanyo Electric Co. (ID = 1475358) Radio RP-7331; Sanyo Electric Co. (ID = 1475360) Radio
RP-7331; Sanyo Electric Co. (ID = 1475361) Radio RP-7331; Sanyo Electric Co. (ID = 1688973) Radio
RP-7331; Sanyo Electric Co. (ID = 2094042) Radio
Use red slider bar for more.
RP-7331; Sanyo Electric Co. (ID = 512557) Radio

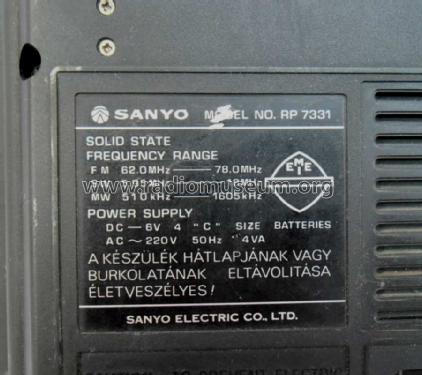

Sanyo Electric Co.: RP-7331 [Radio] ID = 512557 697x643
Select picture or schematic to display from thumbnails on the right and click for download.
For model RP-7331, Sanyo Electric Co. Ltd.; Moriguchi (Osaka):
Kádár Book in 1975-1977.

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1976 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220/ 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: RP-7331 - Sanyo Electric Co. Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 200 x 192 x 75 mm / 7.9 x 7.6 x 3 inch
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Source of data Radio- es TV- kapcsolások, 1975-77

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
