6 Transistor Superhet 6S-716
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1968 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 251332
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 3 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

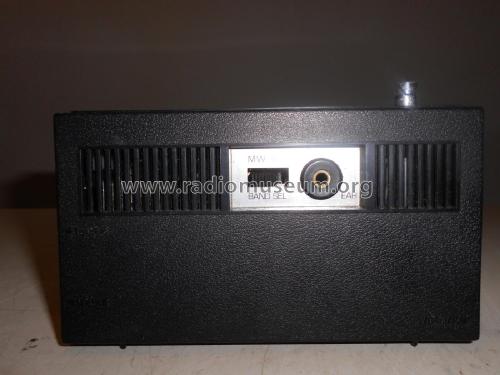

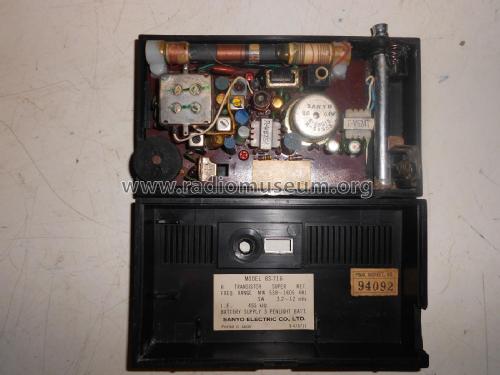

- Model: 6 Transistor Superhet 6S-716 - Sanyo Electric Co. Ltd.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 140 x 80 x 40 mm / 5.5 x 3.1 x 1.6 inch
- Notes
-
frequency range: AM 530/1605 kHz - SW 3,2/12 MHz - controllo volume - presa per auricolare - commutatore AM/SW - antenna interna in ferrirte - antenna telescopica esterna.
- Net weight (2.2 lb = 1 kg)
- 0.250 kg / 0 lb 8.8 oz (0.551 lb)
- Price in first year of sale
- 1,000.00 pte
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
