Solid State Stereo Amplifier DC-60 (OTTO/4)

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1969 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 336483

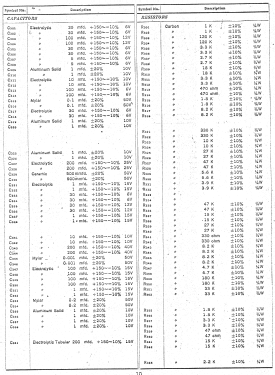

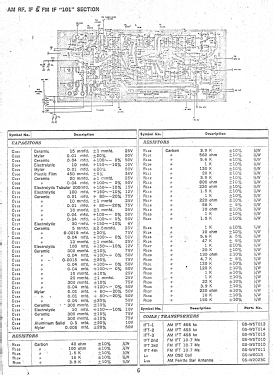

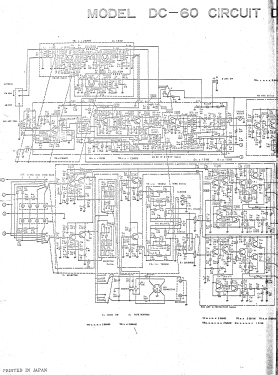

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 37
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Tuned circuits
  • 5 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 50 to 60Hz, 90; 100; 117; 200; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 50 W (undistorted)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Solid State Stereo Amplifier DC-60 - Sanyo Electric Co. Ltd.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 460 x 145 x 290 mm / 18.1 x 5.7 x 11.4 inch
  • Notes

  • Sanyo DC-60 is an AM/FM receiver (tuner with MPX decoder and integrated amplifier).

    AF inputs (referred to 25 W output power):

    • AUX 200 mV at 100 kΩ
    • PU xtal 400 mV at 470 kΩ
    • PU mag 5 mV at 50 kΩ, RIAA equalization
    • Tape head 2.5 mV at 50 kΩ, NAB equalization

    Harmonic distortion: less than 1% at 25 W per channel
    Output impedance: 4 to 16 Ω

  • Net weight (2.2 lb = 1 kg)
  • 9.9 kg / 21 lb 12.9 oz (21.806 lb)
