Solid State Stereo Music Center GXT 4540KL

Solid State Stereo Music Center GXT 4540KL; Sanyo Electric Co. (ID = 1187644) Radio Solid State Stereo Music Center GXT 4540KL; Sanyo Electric Co. (ID = 1187641) Radio
Solid State Stereo Music Center GXT 4540KL; Sanyo Electric Co. (ID = 1187642) Radio Solid State Stereo Music Center GXT 4540KL; Sanyo Electric Co. (ID = 1187646) Radio
Solid State Stereo Music Center GXT 4540KL; Sanyo Electric Co. (ID = 1876388) Radio
Use red slider bar for more.

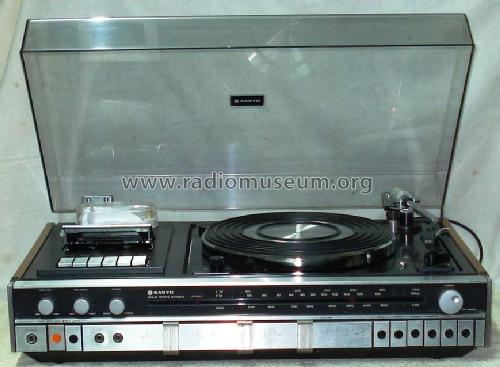

Solid State Stereo Music Center GXT 4540KL; Sanyo Electric Co. (ID = 1187644) Radio
Sanyo Electric Co.: Solid State Stereo Music Center GXT 4540KL [Radio] ID = 1187644 869x639
Select picture or schematic to display from thumbnails on the right and click for download.
For model Solid State Stereo Music Center GXT 4540KL, Sanyo Electric Co. Ltd.; Moriguchi (Osaka):
J_Sanyo_Solid State Stereo Music Center GTX 4540KL_jpg

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1975 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 13:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details Other Combination - see Notes
Power type and voltage Alternating Current supply (AC) / 110; 120; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 8 W (unknown quality)
from Radiomuseum.org Model: Solid State Stereo Music Center GXT 4540KL - Sanyo Electric Co. Ltd.;
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 568 x 175 x 344 mm / 22.4 x 6.9 x 13.5 inch
Notes Radio Cassette Recorder Turntable.
1 Fet, 25 diodos, 2 Leds, 5 ICs.
LW 150-350 KHz.
MW 520-1605 KHz.
FM 87,5-108 MHz.
Speaker 6-1/2" x 2, Input Power(continuos) 10 W. 8 Ohms. dimensões 260 x 460 x 170 mm.
Weight 3.0 Kg.
Turntable Speed 33-1/3 ou 45 Rpm. Pickup system Ceramic stereo cartridge with diamond stylus (STL-1D). Input 250mV (330Kohms). Output 50mV (47Kohms).
Net weight (2.2 lb = 1 kg) 9.7 kg / 21 lb 5.9 oz (21.366 lb)
Source of data -- Original-techn. papers.
Mentioned in Le grand livre de la TSF (N° fiche = 15893)

Model page created by João-Afonso Santos. See "Data change" for further contributors.
