• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159583

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors
• 2SK19 2SC394 2SC394 2SC930 2SC930 2SC930 2SC930 2SC929 2SC772 2SC536 2SC536 2SC536 2SC536 2SC536 2SC536 2SC536 2SC693 2SC693 2SB186

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

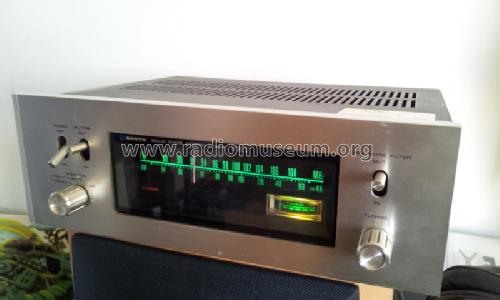

• Model: Solid State Stereo Tuner FET FMT-1400K - Sanyo Electric Co. Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 292 x 105 x 250 mm / 11.5 x 4.1 x 9.8 inch

• Notes
• Sanyo FMT-1400K Solid State Stereo Tuner FET;
  Manual analogue tuning, signal meter, stereo indicator lamp, dial scale illumination, FM up to 108 MHz, FM mono, muting, MPX noise filter, RCA terminals, ferrite rod & ext. antenna & ground screw terminals, 8 W power consumption, chrome/alu front with black cabinet, made in Japan.

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
