- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 285228
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 100 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

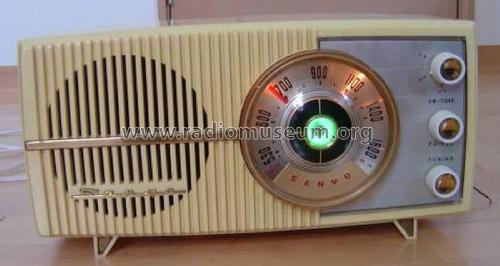

- Model: SS 70 - Sanyo Electric Co. Ltd.;
- Shape
- Tablemodel, with any shape - general.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Literature/Schematics (2)
- -- Original-techn. papers.
- Author
- Model page created by Adrian Riesen. See "Data change" for further contributors.
