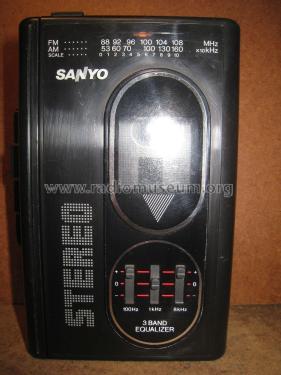

Stereo Cassette Player AM/FM Radio MGR 75

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 288448

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Batteries / addl. power jack / AA: 3 x 1,5 / 4,5 Volt
  • Loudspeaker
  • - only for Earphone!
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Cassette Player AM/FM Radio MGR 75 - Sanyo Electric Co. Ltd.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 80 x 137 x 35 mm / 3.1 x 5.4 x 1.4 inch
  • Notes

  • SANYO Stereo Cassete Player AM/FM Radio - mod. MGR 75
    Controllo volume -
    equalizzatore 3 bande (100 Hz - 1 kHz - 8 kHz) -
    commutatore AM/FM/FM stereo -
    commutatore Tape/Radio -
    uscita ext DC 4,5 V -
    tasti play/rew/ff.ww/stop-eject -
    uscita per cuffia - red led FM Stereo -
    frequency range: AM: 630-1605 kHz - FM: 87,5-108 MHz -
    frequency response: 4 Hz - 14.000 Hz;
    tape speed 4.75 cm/sec; S/N ratio: 47 dB.

  • Net weight (2.2 lb = 1 kg)
  • 0.290 kg / 0 lb 10.2 oz (0.639 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
