Stereo Cassette Recorder with Quartz Clock 4-Band M-9990L

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1981
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 198973

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 240 / 12; 1,5 & 8 x 1,5 Volt
  • Loudspeaker
  • 4 Loudspeakers / Ø 16 cm = 6.3 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Cassette Recorder with Quartz Clock 4-Band M-9990L - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 490 x 290 x 120 mm / 19.3 x 11.4 x 4.7 inch
  • Notes
  • Sanyo 4-Band Stereo Cassette Recorder with Quartz Clock M-9990L (=GB version);

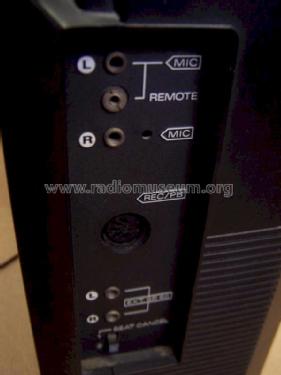

    2 x 3.5 W AF, LCD alarm clock, 2 VU meters, AFC, DIN I/O, 2 x mic & rem. in, ext. speaker jacks, 20 W power consumption.
  • Net weight (2.2 lb = 1 kg)
  • 5.7 kg / 12 lb 8.9 oz (12.555 lb)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
