• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1974 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 238938

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors
• 2SC858 2SC537 2SC537 2SC537 2SC537 2SD227 2SC945 2SC945 2SC1096 2SC1096 2SC858 2SC537 2SC537 2SC537 2SC537 2SD227 2SB22 2SB185 2SC509 1S188 1S1210 DS-17 WG1010A

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 110; 220; 240 / 9 / C: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Combination Language Lab Recorder Stereo Cassette Deck M-2508 - Sanyo Electric Co. Ltd.;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 298 x 78 x 264 mm / 11.7 x 3.1 x 10.4 inch

• Net weight (2.2 lb = 1 kg)
• 6 lb 9 oz (6.563 lb) / 2.979 kg

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)

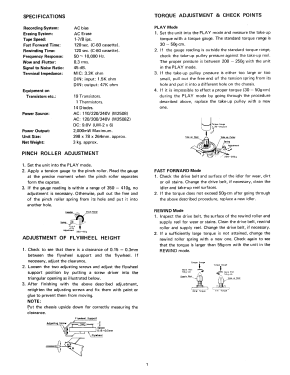

• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
