Stereo Music System DC-570XC

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1972 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 285696

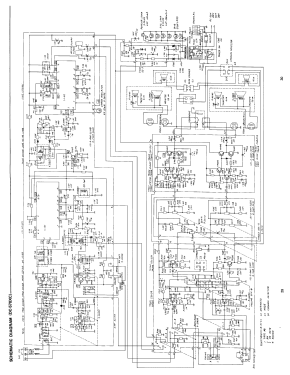

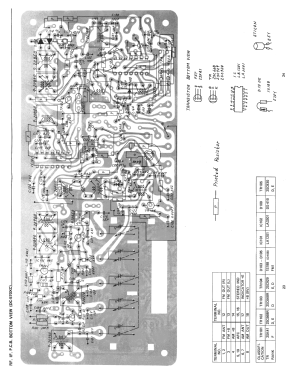

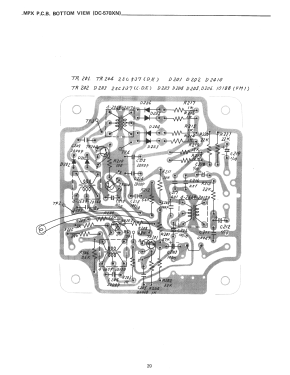

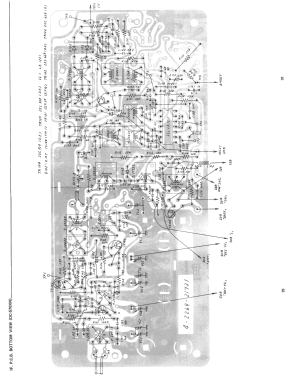

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 17
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer); Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 200; 220; 240 @ 50&60 Hz Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 20 W (undistorted)

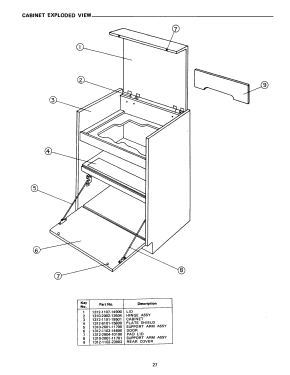

  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Music System DC-570XC - Sanyo Electric Co. Ltd.;
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 470 x 640 x 344 mm / 18.5 x 25.2 x 13.5 inch
  • Notes

  • Bands:

    • MW: 535 - 1605 kHz
    • FM: 88 - 108 MHz

    Player: BSR C-123

    Weight without speakers.

    Speaker system: 2 boxes, each

    • Speakers: 1 x 20 cm and 1 x 6 cm Ø
    • Box dimensions: 512 x 640 x 344 mm
    • Weight: 14 kg.

    Each semiconductor type listed once

  • Net weight (2.2 lb = 1 kg)
  • 20 kg / 44 lb 0.8 oz (44.053 lb)

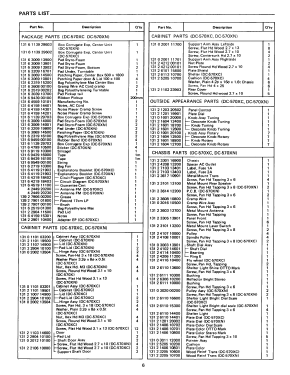

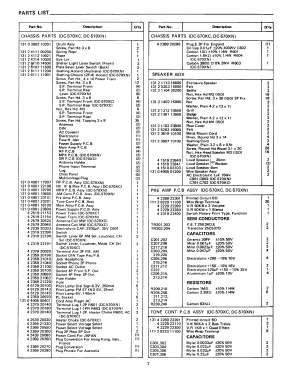

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by João-Afonso Santos. See "Data change" for further contributors.
