Stereo Radio Cassette Recorder M-4200LU

Stereo Radio Cassette Recorder M-4200LU; Sanyo Electric Co. (ID = 797230) Radio Stereo Radio Cassette Recorder M-4200LU; Sanyo Electric Co. (ID = 797231) Radio
Stereo Radio Cassette Recorder M-4200LU; Sanyo Electric Co. (ID = 797232) Radio Stereo Radio Cassette Recorder M-4200LU; Sanyo Electric Co. (ID = 797233) Radio

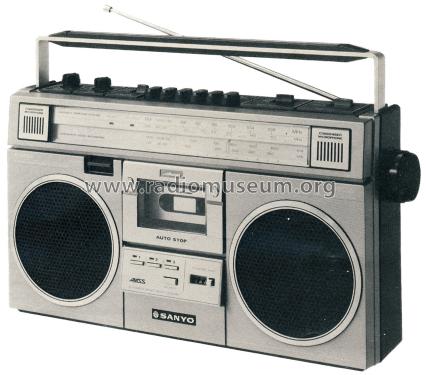

Stereo Radio Cassette Recorder M-4200LU; Sanyo Electric Co. (ID = 1352024) Radio
Use red slider bar for more.
Stereo Radio Cassette Recorder M-4200LU; Sanyo Electric Co. (ID = 797230) Radio
Sanyo Electric Co.: Stereo Radio Cassette Recorder M-4200LU [Radio] ID = 797230 800x526
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Radio Cassette Recorder M-4200LU, Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1985 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 115; 230 / 6 x 1,5 Volt
Loudspeaker 2 Loudspeakers / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Stereo Radio Cassette Recorder M-4200LU - Sanyo Electric Co. Ltd.;
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 450 x 255 x 115 mm / 17.7 x 10 x 4.5 inch
Notes Sanyo M-4200LU Stereo radio cassette recorder;
FM: 87.5 - 108 MHz,
MW: 525 - 1605 kHz,
SW: 6 - 18 MHz,
LW: 150 - 350 kHz,
AMSS(Automatic Music Select System).
Net weight (2.2 lb = 1 kg) 3.9 kg / 8 lb 9.4 oz (8.59 lb)
Source of data - - Data from my own collection

Model page created by Jouko Laukkanen. See "Data change" for further contributors.
